Advanced Industrial Multi-Axis Robotic Paint & Flash-Off Curing System

Advanced Industrial Multi-Axis Robotic Paint & Flash-Off Curing System

Accelerating Production Efficiency and Standardizing Quality for High-Volume Components
Introducing the Advanced Industrial Multi-Axis Robotic Paint & Flash-Off Curing System, designed by CoatTech Intelligent Equipment to maximize production efficiency and coating quality. Optimized for complex geometries such as automotive exterior panels, appliance housings, and large industrial castings, this system integrates advanced multi-axis robotics, sequential processing zones, and state-of-the-art environmental controls. It ensures consistent, high-performance finishes across varying component shapes while significantly accelerating throughput.

System Overview

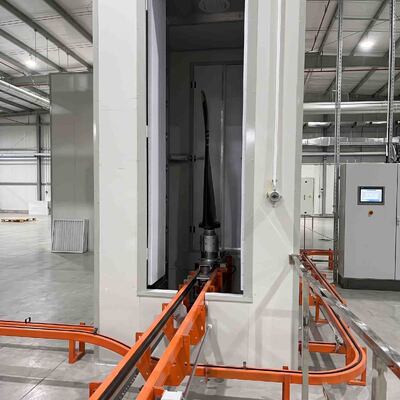

Our multi-stage robotic painting line is built around a heavy-duty, floor-mounted chain-on-flat or skid conveyor system, allowing for synchronous part transport and precision positioning. Each part is mounted on a customizable fixture that interacts seamlessly with multiple robotic spray stations. Housed within an insulated, modular clean-room grade enclosure, the system ensures zero contamination throughout the entire application and drying sequence. Depending on production needs, the line can be configured with highly efficient modular dry-filter booths or our advanced water wash filtration technology to capture overspray and maintain a safe, compliant working environment.

Key Features & Benefits

1.Integrated Multi-Axis Robotic Spraying: Multiple robotic arms with advanced electrostatic atomizers ensure complex geometries are coated with exceptional precision and repeatability, reducing paint waste and improving finish quality consistency.

2.Sequential Multi-Zone Process Flow: Parts seamlessly advance through dedicated zones (pre-heat, paint application, flash-off, and curing) without re-handling, optimizing material flow and minimizing contamination risk.

3.High-Insulation Enclosure: Construct with high-insulation panel architecture and integrated automated doors to maintain strict temperature and clean-room level particulate control throughout the process.

4.Configurable Filtration (Modular Dry or Water Wash): Tailored filtration solutions efficiently capture paint overspray, protecting operators and the environment while optimizing maintenance schedules.

5.Intuitive HMI and PLC Control: A central Human-Machine Interface with touchscreen provides real-time control, monitoring of conveyor speed, spray parameters, airflow velocity, and detailed data logging for quality assurance.

Technical Specifications

Need a Custom Solution for Your Plant?

Every manufacturing layout is unique. CoatTech specializes in designing and manufacturing turnkey intelligent finishing solutions

tailored to your exact facility dimensions and production targets.

Contact us today for layout drawings, technical proposals, and price calculations.
